Importing effects

Save the effect you created in Pixelpart as a .ppfx file and place it inside the folder of your Godot project. If you have installed the plugin correctly, Godot recognizes the .ppfx file as a Pixelpart Effect.

Playing effects

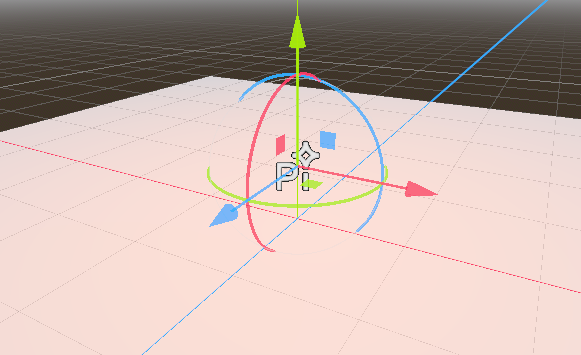

In order to actually play the effect in your game, add a new PixelpartEffect node to the scene (PixelpartEffect2D for 2D scenes). The effect is shown as a small Pixelpart icon in the scene view and can be moved and rotated like any other node.

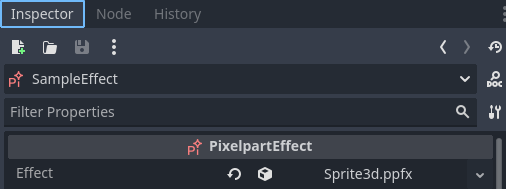

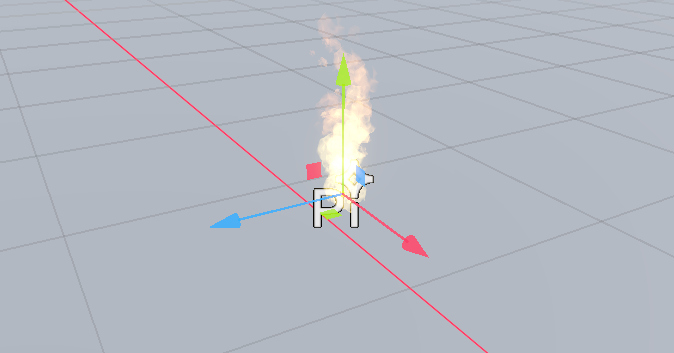

Now drag the imported effect asset (.ppfx file) onto the Effect field in the node's inspector window. The effect should now be visible in the game. If the effect does not appear, make sure you have set an appropriate Effect Scale value in the node's inspector.

Effect properties

When you select a PixelpartEffect or PixelpartEffect2D node, the inspector shows important properties that can be used to adjust how the effect is simulated and rendered.

Property	Description
Effect	The effect to be played.
Playing	Whether the effect is playing or paused.
Loop	If enabled, the effect is repeated after the time specified in Loop Time.
Loop Time	Time in seconds after which the effect is repeated. Only has an effect if Loop is enabled.
Warmup Time	Time in seconds the effect is pre-simulated before being rendered. This value impacts performance and should be kept as low as possible.
Speed	Multiplier for the playback speed of the effect. For example, setting Speed to 0.5 shows the effect in slow motion.
Frame Rate	How many iterations are simulated per second. Can be used to improve performance for complex effects.
Seed	Seed used to initialize the effect simulation. This seed is used if Random Seed is not enabled.
Random Seed	Whether to use a random seed to initialize the effect simulation.
Inputs	Dictionary of effect input values.
Effect Scale	Multiplier for the size of the effect. Adjust this value if the effect appears too small or too large in the scene.
Flip H	Whether the effect is flipped horizontally. Only available for PixelpartEffect2D
Flip V	Whether the effect is flipped vertically. Only available for PixelpartEffect2D
